Highest stability and precision with the shortest cycle time

Multi-use PET bottles come out significantly better in life cycle assessments than single-use PET bottles ENGEL set new standards with the presentation of the first all-electric e-cap injection mould-ing machine at K 2010. Until then, hydraulic machines using accumulators for the injection movement were the standard for the production of caps. The all-electric drive technology in this field of application was a revolution at the time. To date, the e-cap is the most energy-efficient cap machine on the market and at the same time the only high-performance machine tailored to the requirements of the caps and closures industry providing allelectric operation even with a clamping force range as high as 4,200 kN. With an average ROI of less than two years, the e-cap has quickly established itself worldwide since its market launch.

Highest dynamic performance with frequent load changes

Since 2010, the requirements for beverage caps have changed substantially. This is why the continuous further development of e-cap now is being integrated into a next generation machine. Continuous part weight reductions play a central role. For still water, caps with a weight of significantly less than one gram are produced today. As a result, the cooling and cycle times have continued to drop. Where the cycle times ten years ago were still 2.5 seconds, today’s cap machines need to be able to produce at 2-second intervals and faster. When developing the new generation of machines, the main fo-cus was therefore both on performance and on stability. The new e-cap achieves even faster mould movements and is designed with an even more stable machine bed for more frequent load cycles.

Ejector drives amplified with booster

An e-cap 2440/380 is demonstrating the series’ new performance achievements by

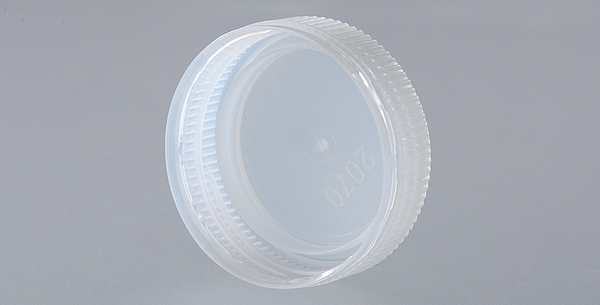

force producing 29/25 caps in a 96-cavity mould by Plastisud. The shot weight is 1.3 grams per cavity with a cycle time of less than 2 seconds. An HDPE from Borealis/Borouge is processed. The sys-tem is equipped with camera-supported 100 percent quality inspection by IMDvista and a dry air system by Eisbär. Further system partners are Piovan, PackSys Global and PSG.

The plasticising unit was completely redesigned in the course of the e-cap’s further develop-ment, as the properties of the materials to be processed have also changed. The raw material manufacturers have adapted the materials to the lower cap weights. For CSD (carbonated soft drink) caps, the melt flow index (MFI) of today’s HDPE grades is between 0.8 and 1.4 g/10 min. With very short cycle times, these values require particularly high plasticising rates.

ENGEL has increased the torque of the plasticising drive accordingly and developed both a new plasticising screw and a new highly wear-resistant sliding ring non-return valve specifically for cap manufacture. Both products are part of the standard scope of supply of the new e-cap machines. With its new design, the barrier screw processes high viscosity HDPE in a particularly gentle way, even given high throughput levels, while ensuring a very good melting rate and homogeneity of the melt. This further contributes to the high process stability and repeatability of e-cap machines.

Optimising energy consumption across the entire system

Cleanliness and energy efficiency have been essential characteristics of the series right from the outset. With an encapsulated toggle lever and a very clean linear guide of the moving plat-en, the e-cap machines reliably meet the requirements of strictly regulated production in the food industry. The machines’ all-electric drive technology makes a major contribution to their outstanding energy efficiency. In addition, braking energy is recuperated, reliably preventing the need for expensive peak power. Thanks to the very high efficiency of the drives used, the e-cap ma-chines also only require a minimum of coolant. The e-cap 380, for example, operates at high speed with an energy consumption of 0,37 kWh per kilogram of pellets.

As a system supplier, ENGEL precisely coordinates all the components of the production cell right from the start of the project. This allows ENGEL to fully leverage the efficiency potential throughout the entire production cell.

The new e-cap is available in the sizes 220, 280, 380 and 420 with clamping forces from 2,200 to 4,200 kN.
