XS Preform Line – the compact solution for low speed

XS Preform Line

The compact, high-quality solution for processing and sorting up to 10,000 preforms per hour.

Components
_Loading station (one box)
_Silo rucksack or silo belt with elevator
_Roller sorter with moveable access
_Discharge rail or transfer unit

Options
_Component covers
_Soft-handling
_Line rinser (air) or UVC irradiation

Type overview
XS18R  up to 10'000 p/h

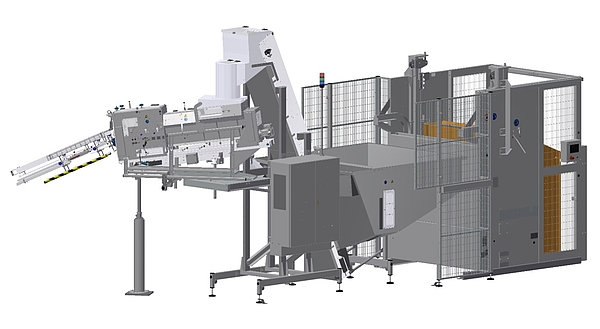

LS Preform Line – the compact solution up to the medium output range

LS Preform Line

The compact, high-quality system solution for processing and sorting up to 42,000 preforms per hour, directly upstream of the blow moulding machine or inspection system.

Components
_Loading station (single or double box tipper)
_Silo rucksack or silo belt with elevator
_Roller sorter with moveable access
_Discharge rail

Options
_Component covers
_Soft-handling
_Line rinser (air) or UVC irradiation

Type overview
LS18R  up to 20,000 p/h
LS25R  up to 28,000 p/h
LS25  up to 32,000 p/h
LS35  up to 42,000 p/h

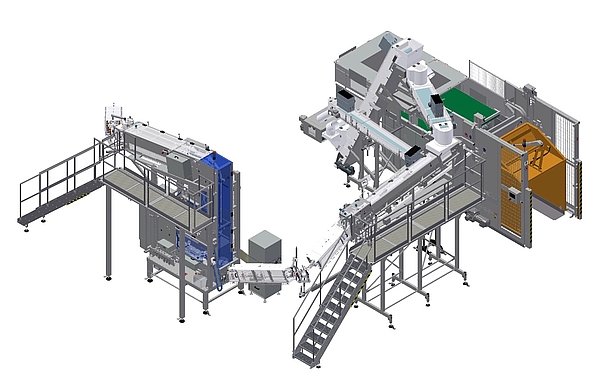

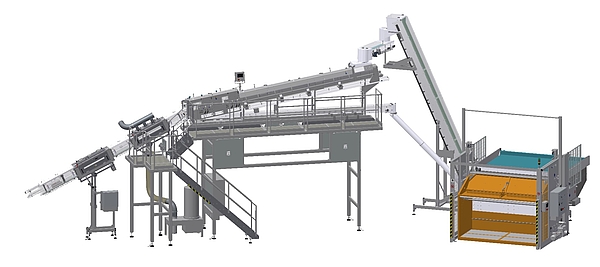

FS Preform Line – the flexible solution for all output ranges

FS Preform Line

The flexible solution for all output ranges and layout and set-up requirements. Expandable with various options.

Components
_Loading station (one or two box(es))
_Silo rucksack or silo belt with elevator
_Soft metering belt possible instead of silo belt
_Conveyor line as per set-up request
_Roller sorter with direct access
_Discharge with/without curve
_Line rinser (air) and/or UVC irradiation
_Options as per customer request

Type overview
FS18R  up to 26,000 p/h
FS25  up to 46,000 p/h
FS35  up to 58,000 p/h
FS50  up to 68,000 p/h
FS60  up to 100,000 p/h

FS Preform Line ergo  – the flexible floor level solution for all output ranges

FS Preform Line ergo

The flexible floor level solution for all output ranges and layout and set-up requirements. Expandable with various options.

Components
_Loading station (one or two box(es))
_Silo rucksack or silo belt with elevator
_Soft dosing belt possible instead of silo belt
_Conveyor line as per set-up request
_Roller sorter with floor level access
_ErgoFlow (horizontal) with/without curve
_Line rinser (air) and/or UVC irradiation
_Options as per customer request

Type overview
FS18R ergo
FS25 ergo
FS35 ergo
FS50 ergo
FS60 ergo

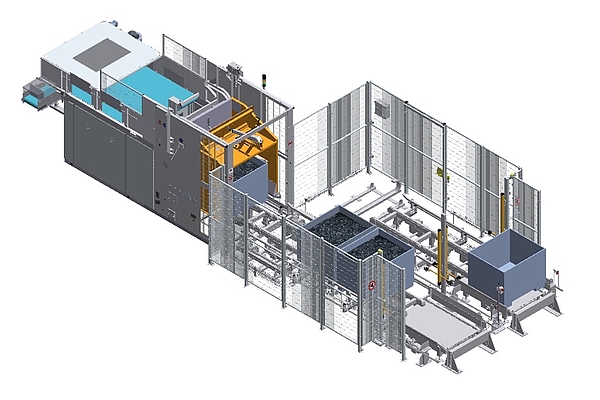

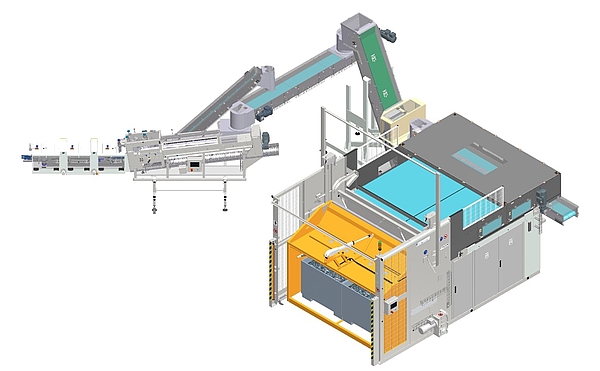

AS Preform Line – the high-quality clean line solution

AS Preform Line

The high-quality clean line solution with soft handling, sorting close to the ground, unique cleaning system, optional camera inspection and UVC irradiation.
Focus: Bottling plant.

Components
_Automatic loading system (plus+) possible
_Loading station with soft metering belt
_Conveyor line as per set-up request
_Roller sorter close to the ground possible
_Discharge or feed rail (horizontal)
_Overhead air rinser, camera inspection (optional)
_Options as per customer request

Type overview
AS18R  up to 26,000 p/h
AS25  up to 46,000 p/h
AS35  up to 58,000 p/h
AS50  up to 68,000 p/h
AS60  up to 100,000 p/h

CS Preform Line – the customized solution

CS Preform Line

The CS Preform Line is a special solution for customers who have specific requirements for the function due to existing infrastructure (hall height) or a special preform.
Focus: Everything – worldwide!

Possible requirements
_Systems height under 4000mm
_Podest and access on customer request
_up to 25-liter Preform possible
_Sorting upstream of an assembly line
_Spraying Preforms
_Gate Cutter solutions inline or offline
_Much more!

Type overview
We use our construction kit as well as possible and supplement it with special developments on the requirements.

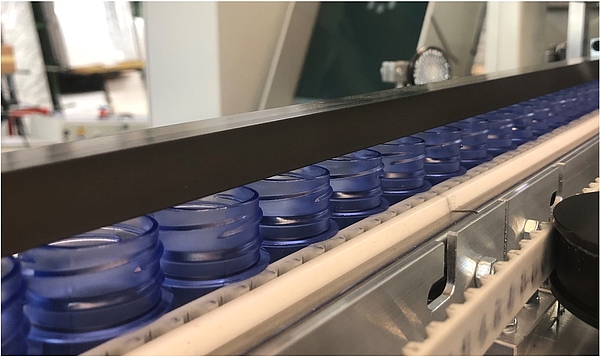

ErgoFlow – the innovation for floor level Preform Lines

Description

ErgoFlow belt feeding
_One belt on the left and right side
_Toothed belt (timing belt)
_Gap are detected by sensors
_Gap will be closed in a active way by speed up the belt
_Preforms can slide on the belt and close the gap easily
_Top guide and body guide installed like the traditional gravity rail
_FDA approved belts

Conclusion
Higher efficiency due to an active regulation of the preform flow!

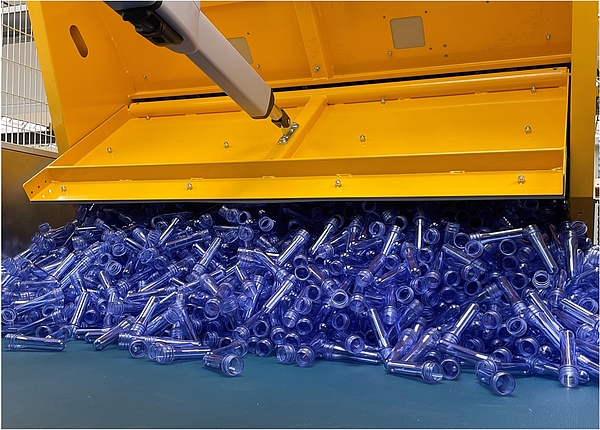

SH Soft-handling – gentle on preforms, reduced noise level

Increase your preform quality at the first step of your PET line

Soft-handling in loading
_Preform loading with a preform tipper to a width dosing belt
_Dosing belt instead of silo/hopper
_Available for single or double tipper
_Significant reduction of noise during preform loading
_Extreme gentle preform handling – no more falling height
_Available as a part of a complete Tanner Preform Line or as PU Preform Unit for a 3rd party preform feeding system
_Fast emptying during changeover
_FDA approved belt

Conclusion
Gentle preform handling for quality increasing at the first step on a complete PET line!

SH Soft-handling at a glance

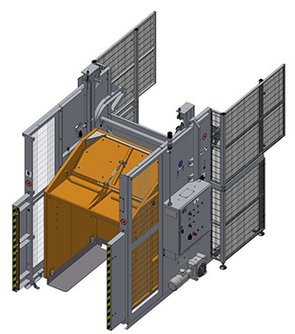

PalT loading – efficient and safe process

Different solutions available

Available systems

• Single line with single tipper
• Double line with double tipper
• Roller conveyors for plastic boxes or octabins with pallets
• Chain transport for metal boxes

Options

• Soft-handling
• AGV/LGV loading
